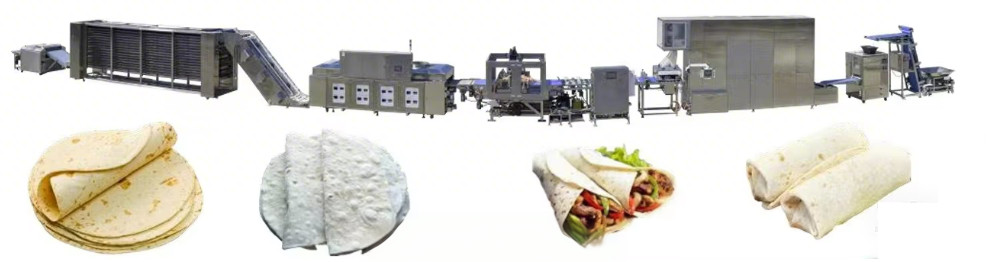

Fully Automated Tortilla Production Line: Intelligent Flexible Manufacturing System Technical Detail

Fully Automated Tortilla Production Line: Intelligent Flexible Manufacturing System Technical Detail

As an industry-leading high-end automated solution, the Fully Automated Tortilla Production Line developed by FQTT Bakery Machinery employs continuous hot-press forming technology, delivering a single-line output of 5,000–18,000 pieces/hour. Compatible with sizes ranging from 15cm to 33cm, this system achieves precise dough weight control (30g–150g adjustable) through parameterized adjustments, offering global clients an industrial-grade solution that balances standardization and customization.

Core Technical Architecture & Production Workflow

  1. Intelligent Dough Mixing & Precision Dividing

    • Equipped with a twin-screw vacuum mixer operating at -0.08 MPa to eliminate air bubbles, ensuring 99.5% dough density uniformity.

    • A servo-driven dividing and rounding machine, integrated with laser weight sensors, cuts bulk dough into 50–200g portions with a weight tolerance of ≤±0.3g.

  2. Controlled Fermentation & High-Speed Forming

    • Multi-layer tunnel fermentation chambers enable dynamic temperature (30°C–45°C) and humidity (75%–90%) adjustments, with programmable fermentation times (10–15 minutes).

    • Hydraulically driven hot presses feature nano-ceramic-coated molds (400°C-resistant), forming tortillas in 5 seconds with a thickness accuracy of ±0.05 mm, paired with self-cleaning blade systems.

  3. Zoned Baking & Smart Packaging

    • Three-zone infrared tunnel ovens (preheat/bake/color-fix) utilize PID algorithms to control temperature gradients (160°C–230°C), with adjustable belt speeds (2–10 m/min).

    • AI vision inspection systems, equipped with 20MP industrial cameras, detect 12 types of defects (e.g., bubbles ≥0.5mm, cracks) at ≥99.5% accuracy.

    • Palletizers support customizable stacking (6 or 10 pieces/stack) and integrate seamlessly with FLOW wrappers (60 bags/min) or zippered pouch machines (45 bags/min), achieving seal strengths of 4.5N/15mm.

Intelligent Control & Industrial-Grade Performance

  • Centralized Control System: Combines industrial PLCs and SCADA platforms, featuring a 10.1-inch touchscreen for one-touch recipe switching (50 presets), self-diagnosis (response time <2 seconds), and real-time energy monitoring (≤0.15 kWh/kg).

  • Flexible Production Design: Mold changes and parameter adjustments are completed in 15 minutes, supporting multi-ingredient compatibility (wheat, rye, gluten-free) for foodservice, retail, and airline catering markets.

  • Sustainable Manufacturing: IE4 ultra-high-efficiency motors and waste heat recovery systems reduce energy consumption by 25%, while modular design cuts maintenance downtime by 30%.

Global Certifications & Value-Added Services

FQTT Bakery Machinery production lines are certified to CE, FDA, and ISO 22000 standards, with service networks spanning 20+ countries, including Mexico, Southeast Asia, and Europe. We provide:
✅ Recipe Development Support: Custom formulations for high-fiber blends, coconut-flavored tortillas, and more.
✅ Packaging Solutions: Full scalability from 10-piece retail packs to 1,000-piece industrial rolls.
✅ Localized Operations: 48-hour emergency response, annual maintenance agreements, and operator training.

Upgrade Your Production Line Today!
Choose FQTT Bakery Machinery for:
🔹 18-month extended warranty with core components rated for 10+ years.
🔹 30% lower cost than European/American brands, delivering unmatched value.
🔹 72-hour customized solutions and 90-day delivery & installation.

From 15cm Street Food to 33cm Industrial Rolls—Innovate with FQTT to Lead Global Markets!
