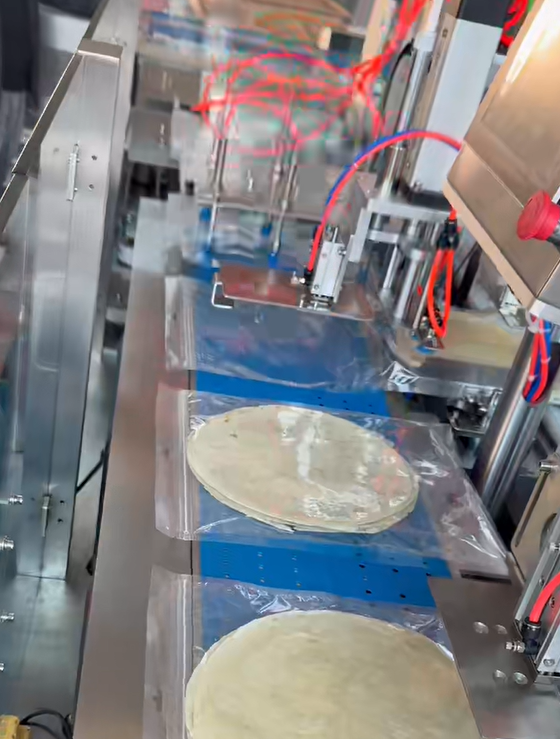

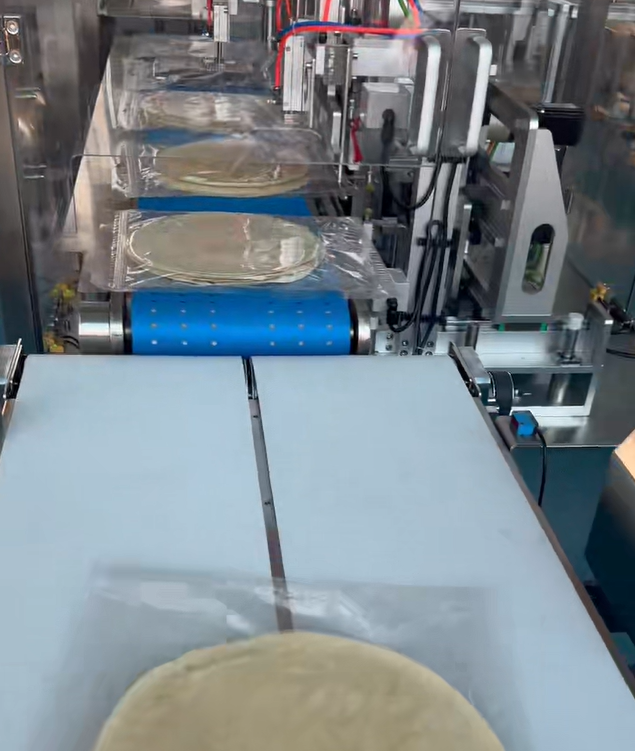

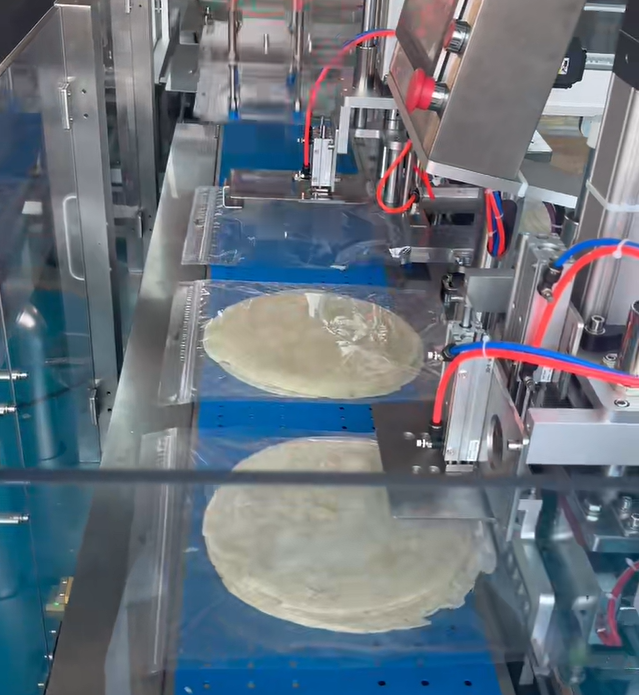

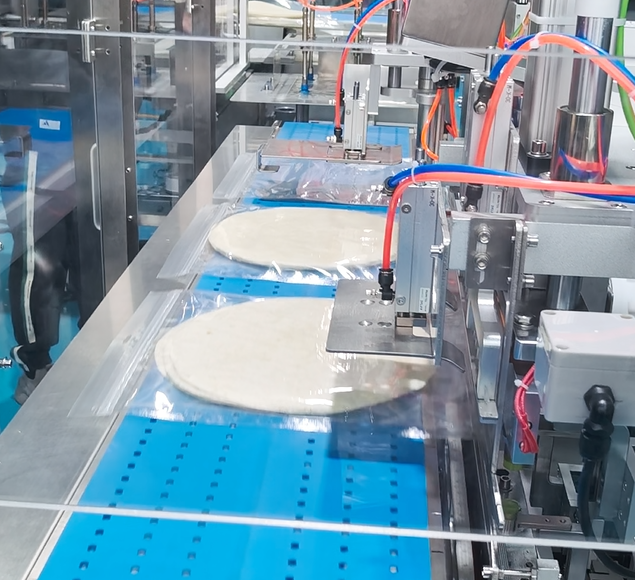

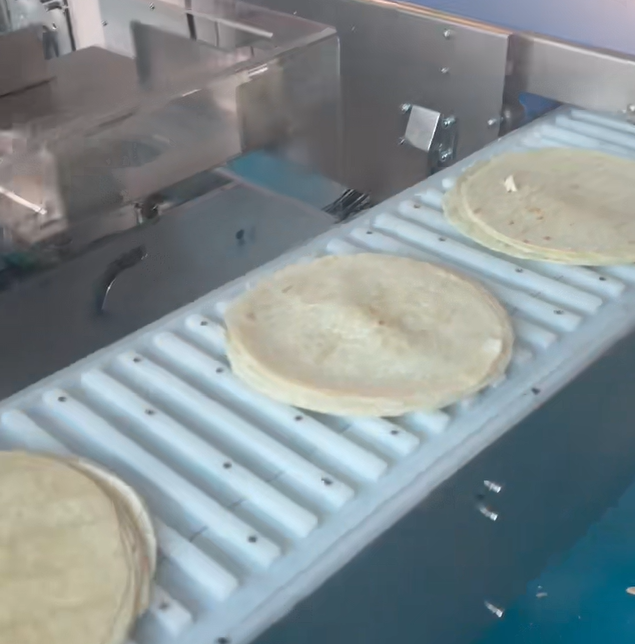

Pre-made Pouch Tortilla Packing Machine (Zipper Type)

Pre-made Zipper Pouch Tortilla Packaging Machine

Tortilla Packaging Machine for Pre-made Zipper Pouches

The FQTT Tortilla Packaging Machine for Pre-made Zipper Pouches features:

1. Utilizes prefabricated bags, fully automatic material handling, bag picking, bag feeding, bag opening, material pushing, bag pushing, and sealing. Its compact and aesthetically pleasing structure is suitable for both packaged and unpackaged food inner-bag packaging.

2. Employs a servo control system with a clearer touchscreen human-machine interface for easier maintenance.

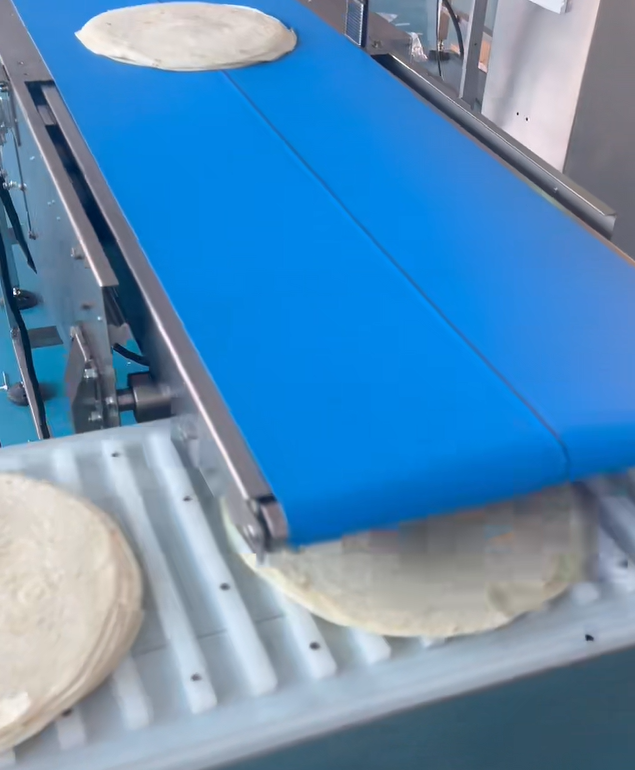

3. Utilizes automatic material handling and conveying, facilitating connection with automated production lines and saving labor costs.

4. Photoelectric eye automatic detection and servo tracking prevents bag opening if there is a deviation in bag position, maximizing packaging material savings.

5. High degree of automation, highly specialized, high production efficiency, and low failure rate.

Specifications and technical parameters of FQTT Pre-made Pouch Tortilla Packing Machine (Zipper Type):

1. Packaging specifications: Single item or multiple bags in combination

2. Packaging bag material: OPP, CPP, PE, etc., pre-made bags, thickness: 45～60μm

3. Pre-made bag capacity: 2 bag storage compartments, storing 100～200 pre-made bags, depending on the type of bag

4. Main machine dimensions: 2400×1150×1530mm (length×width×height, excluding the sorting line and conveyor tail frame)

5. Equipment power: 7.3Kw

6. Power supply: 220V±10%, 50Hz±5%, control voltage is DC 24V

7. Air source: 0.6～0.8Mpa, air consumption: 100L/min

8. Weight: Approximately 1200kg

9. Noise: ≤80 decibels (1 meter away from the machine)

10. Rated number of operators: 1 person/machine

Pre-made Pouch Tortilla Packing Machine (Zipper Type)
